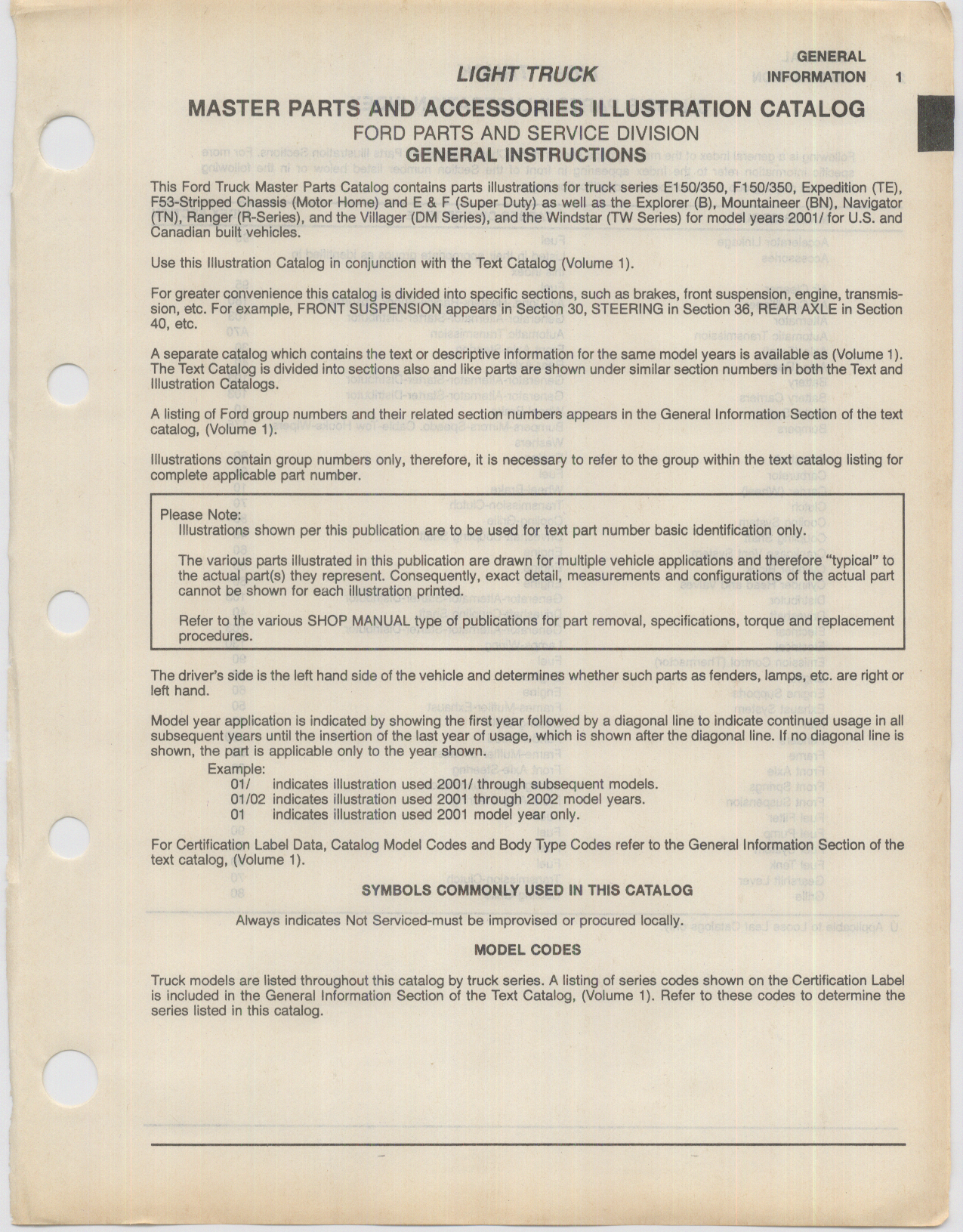

Q GENERAL LIGHT TRUCK insonmriou 1 K MASTER PARTS AND ACCESSORIES ILLUSTRATION CATALOG FORD PARTS AND SERVICE DIVISION GENERAL INSTRUCTIONS This Ford Truck Master Parts Catalog contains parts illustrations for truck series E150 350 F150 350 Expedltlon TE F53 Stripped Chassis Motor Home and E Bt F Super Duty as well as the Explorer B Mountaineer BN Navigator TN Ranier R Series and the Villager DM Series and the Windstar TW Series for model years 2001 for U S and Canadian ullt vehicles Use this Illustration Catalog ln conjunction with the Text Catalog IoIume 1 For greater convenience this catalog is divided into specific sections such as brakes front suspension engine transmis sion etc For example FRONT SUSPENSION appears in Section 30 STEERING in Section 36 REAR AXLE in Section 40 etc A separate catalog which contains the text or descriptive information for the same model years is available as Volume 1 The Text Catalog ls divided into sections also and like parts are shown under similar section numbers In both the Text and Illustration Catalogs A listing of Ford group numbers and their related section numbers appears In the General information Section ofthe text catalog Volume 1 Illustrations contain group numbers only therefore it is necessary to refer to the group within the text catalog listing for complete applicable part number Please Note Illustrations shown per this publication are to be used for text part number basic identification only The various parts illustrated in this publication are drawn for multiple vehicle applications and therefore typica to the actual part s they represent Consequently exact detail measurements and configurations ofthe actual part K cannot be shown for each Illustration printed Refer to the various SHOP MANUAL type of publications for part removal specifications torque and replacement procedures The drlver s side ls the left hand side ofthe vehlcle and determines whether such parts as fenders lamps etc are right or left hand Model year application ls indicated by showing the first year followed by a diagonal llne to lndlcate continued usage in all subsequent years until the insertion of the last year of usage which is shown after the diagonal line If no diagonal line is shown the part is applicable only to the year shown Example 01 indicates illustration used 2001 through subsequent models 01 02 indicates illustration used 2001 through 2002 model years V 7 01 indicates illustration used 2001 model year only For Certification Label Data Catalog Model Codes and Body Type Codes refer to the General information Section of the text catalog Volume 1 SYMBOLS COMMONLY USED IN THIS CATALOG Always indicates Not Senriced must be improvised or procured locally MODEL CODES Truck models are listed throughout this catalog by truck series A listing of series codes shown on the Cenification Label is included in the General information Section of the Text Catalog Volume 1 Refer to these codes to determine the series listed in this catalog 4 j e 4
