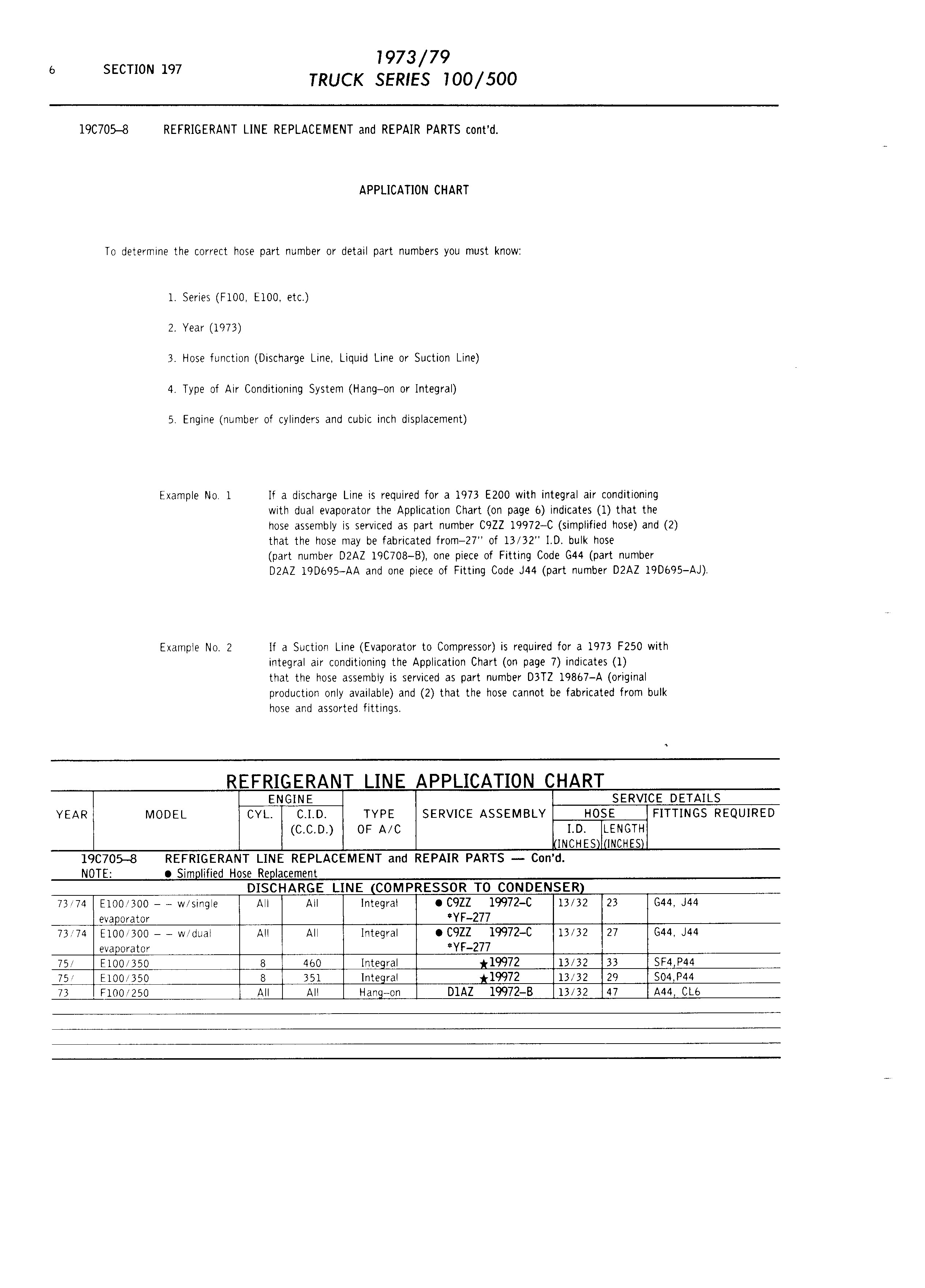

6 SECTION 197 TRUCK SERIES I00 500 190705 8 REFRIGERANT LINE REPLACEMENT and REPAIR PARTS c0nt d APPLICATION CHART To determine the correct hose part number or detail part numbers you must know 1 Series F100 EIOO etc 2 Year 1973 3 Hose function Discharge Line Liquid Line or Suction Line 44 Type of Air Conditioning System Hang on or Integral 5 Engine number of cylinders and cubic inch displacement Example N0 1 If a discharge Line is required for a 1973 E200 with integral air conditioning with dual evaporator the Application Chart on page 6 indicates 1 that the hose assembly is serviced as part number C9ZZ 19972 C simplified hose and 2 that the hose may be fabricated from 27 of 13 32 I D bulk hose part number DZAZ 19C708 B one piece of Fitting Code G44 part number DZAZ 190695 AA and one piece of Fitting Code J44 part number D2AZ 190695 AJ Example No 2 It a Suction Line Evaporator to Compressor is required for a 1973 F250 with integral air conditioning the Application Chart on page 7 indicates 1 that the hose assembly is serviced as part number D3TZ 19867 A original production only available and 2 that the hose cannot be fabricated from bulk hose and assorted fittings REFRIGERANT LINE APPLICATION CHART ENGINE SERVICE DETAILS YEAR MODEL CYL C I D TYPE SERVICE ASSEMBLY HOSE FITTINGS REQUIRED C C D OF A C I D LENGTH INCHES INCHES 19C705 8 REFRIGERANT LINE REPLACEMENT and REPAIR PARTS C0n d NOTE Simplified Hose Replacement DISCHARGE LINE COMPRESSOR TO CONDENSER 72774 EIOO 300 w single All All Integral C9ZZ 19972 C 12 22 23 G44 144 eva orator YF 277 73 74 EIOOl3OO wl dual All All Integral C9ZZ 19972 C 13 32 27 G44 J44 eva orator YF 277 727 EIOO 350 n 460 lnte ral 19972 12722 33 SF4 P44 7511 EIOO 350 n 351 Inte ral 19972 12722 29 04 P44 73 F100 25O All All Han on DIAZ 19972 B 12722 47 A44 CL6
