Master Parts and Accessories Catalog FPS 8096-A October 1986 |
|
PrevNext
19C705
19C705
19552
19552
19552
19552

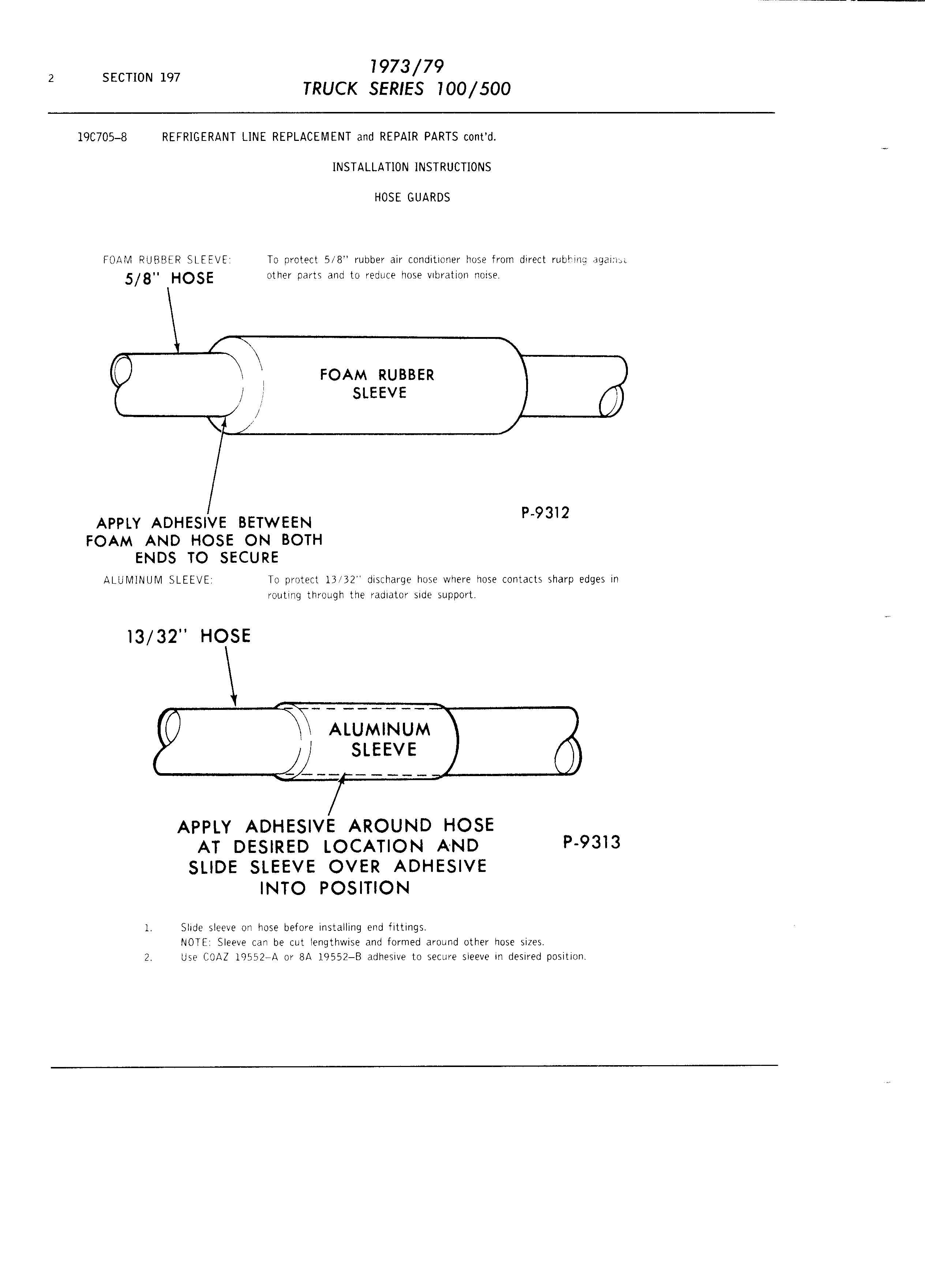

I973 79 SECTION 197 Z TRUCK SERIES IOO 500 19C705 8 REFRIGERANT LINE REPLACEMENT and REPAIR PARTS wmv 1i isTAttAT10iii INSTRUCTIONS HOSE GUARDS FOAM RUBBER SLEEVE To protect 5 8 rubber air conditioner hose from direct rubbing against 5 8 other parts and to reduce hose vibration noise C p FOAM RUBBER SLEEVE 0 APPLY ADHESIVE aETwEEr i P 3I2 FOAM AND HOSE ON BOTH ENDS TO SECURE ALUMINUM SLEEVE To protect 13 B2 discharge hose where hose contacts sharp edges in routing through the radiator side support I3 32 HOYE ALUMINUM SLEEVE APPLY ADHESIVE AROUND HOSE AT EsiRE LOCATION A ND P 93l3 SLIDE SLEEVE OVER ADHESIVE INTO POSITION 1 Slide sleeve on hose before installing end fittings NOTE Sleeve can be cut lengthwise and formed around other hose sizes 2 Use COAZ 19552rA or 8A 19552 8 adhesive to secure sleeve in desired position
