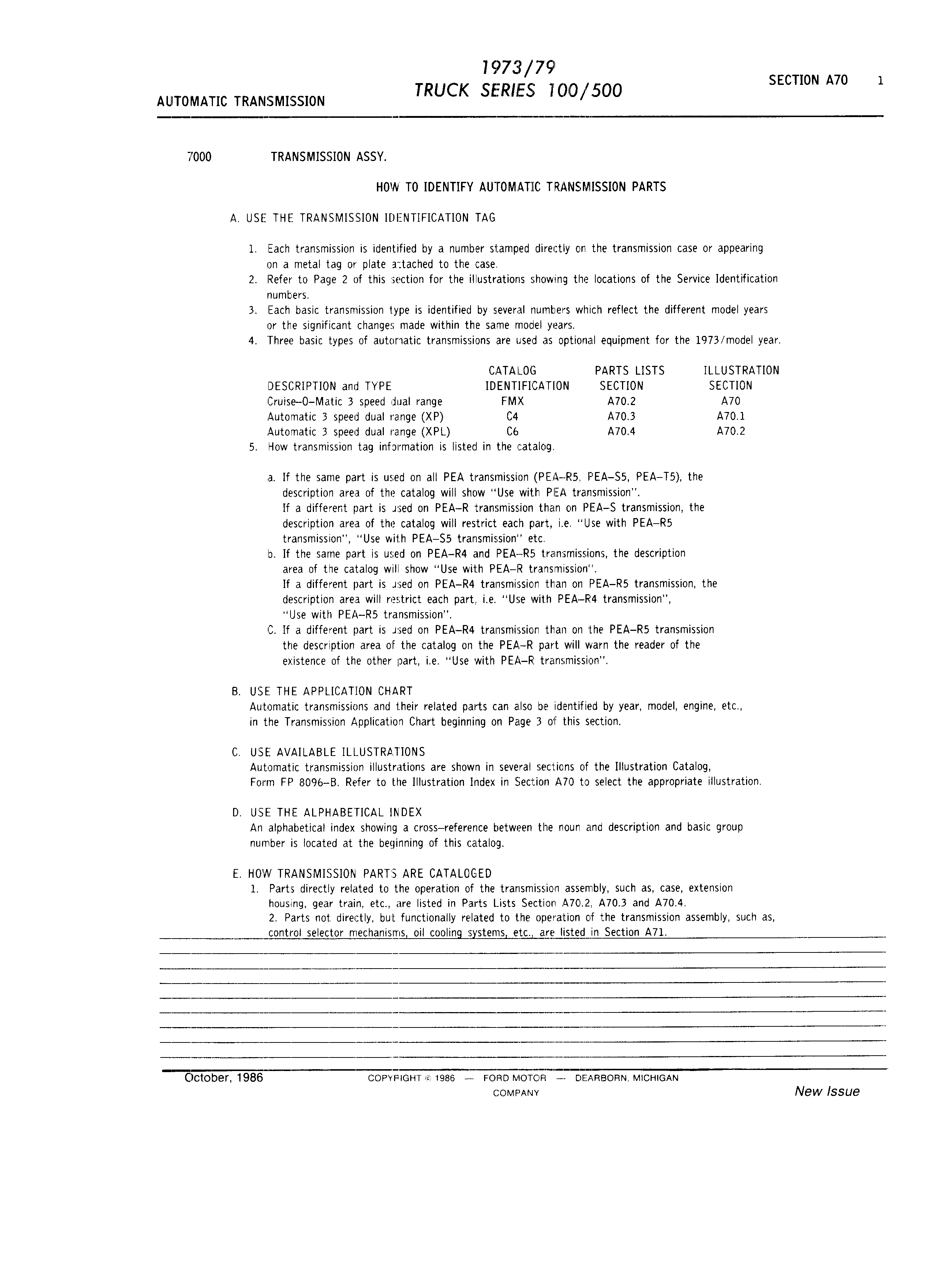

i 73 79 I section A70 1 TRUCK SE RIlES IOIO 500 AUTOMATIC TRANSMISSION 7000 TRANSMISSION ASSY HOW TO IDENTIFY AUTOMATIC TRANSLNIISSION PARTS A USE THE TRANSMISSION IDENTIFICATION TAG 1 Each transmission is identified by a number st amped directly on the transmission case or appearing on a metal tag or plate attached to the case 2 Refer to Page 2 of this section for the illustrations showing the locations of the Service Identification numbers 3 lEach basic transmission type is identified by several nuinhers which reflect the different model years or the significant changes made within the same rnoclel years 4 Three basic types of automatic transmissions are used as optional equipment for the 1973 model year CATALOG PARTS LISTS ILLUSTRATION DESCRIPTION and TYPE IDENTIFICATION SECTION SECTION Cruise O Matic 3 speed dual range FMX A70 2 A70 Automatic 3 speed dual range XP C4 A70 3 A70 Automatic 3 speed dual range XPL C6 A70 4 A70 2 5 How transmission tag information is Iistecl in the catalog a If the same part is used on all PEA transmission PEA Fl5 l EA S5 PEA T5 the description area of the catalog will show Use with PIEA transmission If a different part is used on PEA R transmission than on l EA S transmission the description area of the catalog will restrict each part i e lUse with PEA R5 transmission Use with PEA S5 transmission etc lo If the same part is used on PEA R4 and PEA RE5 transrnissions the description area of the catalog will show Use with PEA R transmission If a different part is used on PEA R4 transmission than on PEA R5 transmission the description area will restrict each part i e Use with PEA R4 transmission Use with PEA R5 transmission C If a different part is used on PEA R4 transmission than on the PEA R5 transmission the description area of the catalog on the PEA R part will warn the reader of the existence of the other oart i e Use with PEA R transmission B USE THE APPLICATION CHART Automatic transmissions and their related parts can also be iidentified by year model engine etc in the Transmission Application Chart beginning on Page 3 oil this section C USE AVAILABLE ILLUSTRATIONS Automatic transmission illustrations are showin in several sections of the Illustration Catalog Form FP 80 8 Refer to the Illustration Index in Section A70 to select the appropriate illustration D USE THE ALPHABETICAL INDEX An alphabetical index showing a cross reference between the noun and description and basic group number is located at the beginning of this catalog E HOW TRANSMISSION PARTS ARE CATALOGIED 1 Parts directly related to the operation of the transmission assembly such as case extension housing gear train etc are listed in Parts Lists Section A70 2 A70 and A70 4 2 Parts not directly but functionally related to the operation of the transmission assembly such as control selector mechanisms oil cooling sy s ggJ g g Jisteg ig Section A71 October 1986 c0i v ISMGHT 1986 i 0 Tc TE i tTTE iae0nr i iviici liGAN t 0MeAr iy New Issue
