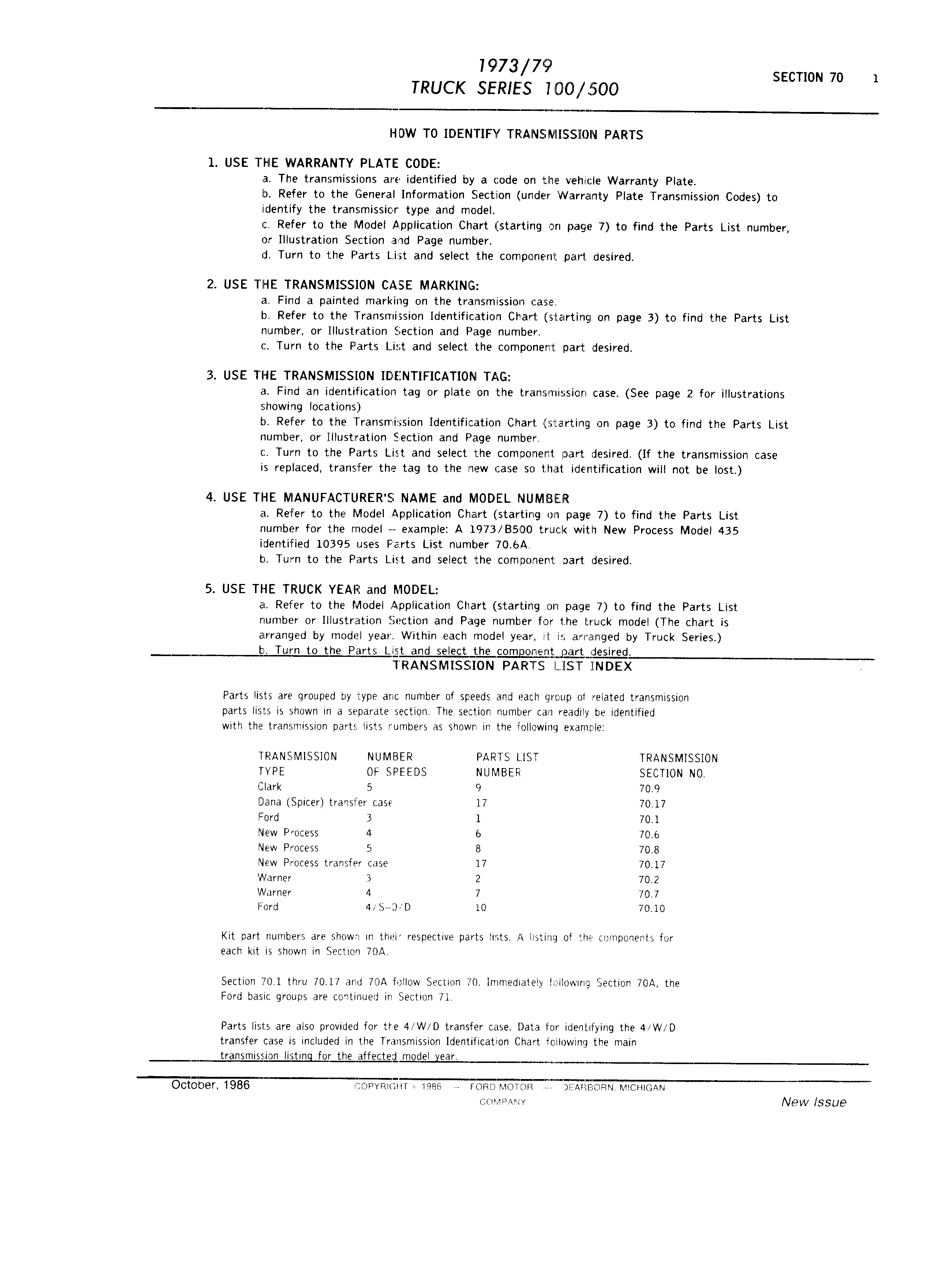

r 973 7 SECTION 70 1 TRUCK SERIES TOO f5OO HOW TO IDENTIFY TRANSiIlillISSiiON PARTS 1 USE THIE WARRANTY PLATE CODE a The transmissions are identified by a code on the vehicle Warranty Plate Io Refer to the General Information Section under Warranty Plate Transmission Codes to identify the transmissior type and miodel l Refer to the IModel Application Chart starting on page 7 to find the Parts List number o r Illustration Section and Page number d Turn to the Parts Li st and select the component part desired 2 USE TIHE TRANSMISSION CASE MARKINIG 21 Find a painted marking on the transmission case b Refer to the Transmission Identification Chart starting on page 3 to find the Parts List number or Illustration Section and Page number c Turn to the Parts List and select the component part desired 3 USE THE TRANSMISSION IDIENTIFICATIONI TAG a Find an identification tag or plate on the transmiission case See page 2 for illustrations showing locations b Refer to the Transrniession Identification Chart s l arting on page 3 to find the Parts List number or Illustration Section and Page number c Turn to the Parts List and select the component part desired If the transmission case is replaced transfer the tag to the new case so that identification will not be lost 4 USE TI E NiANUFACTURER Si NAME and MODEL NUMBER a Refer to the Model Application Chart starting on page 7 to find the Parts List number for the rriodel example A 1973 B500 truck with New Process Model 435 identified 10395 uses Parts List number 70 6A b Turn to the Parts List and select the component part desired 5 USE THE TRUCK YEAR and MODEL a Refer to the Model Application Chart starting on page 7 to find the Parts List number or Illustration Section and Page number for the truck model The chart is arranged by model year Within each model year ri is arruzirrrged by Truck Series bgbrn to tgjarts Lgt and selectjgcomigoiji e t Jgg t iesired TRANSMISSION PARTS li lS INDEX Parts lists are grouped by type anc number of speeds and each groiip of related transmission parts lists is shown in a separate section The section number can readily be identified with the transmission parts lists rumbers as shown in the followini example TRANSMISSION NUMBER PARTS LIST TRANSMISSION TYPE OF SPEEDS NUMBER SECTION NO Clark 5 9 70 9 Dana Spicer transfer case 17 70 17 Eord 3 1 70 1 New Process 4 6 70 6 New Process 5 8 70 8 New Process transfer case 17 70 17 Warner 3 2 70 2 Warner 4 7 70 7 Ford 4zS D D IO 70 10 Kit part numbers are shown in their respective parts lists A iistinxi of lie components for each kit is shown in Section 70A Section 70 1 thru 70 17 and 70A fellow Section 70 Immediately lollowirig Section 70A the Ford basic groups are cowtinued in Section 71 Parts lists are also provided for tre 4 W D transfer case Data tor identrfying the 4 W D transfer case is included in the Transmission Identificatron Chart ioliowirig the main transmissg sting foigg affected model year Octgber 1986 f oevar5ii ieee T TE riR i EE T YK E Z co n er v New Issue
