Master Parts and Accessories Catalog FPS 8096-A October 1986 |
|
PrevNext
2510466
2510466
10466
10466
2505079
2505079

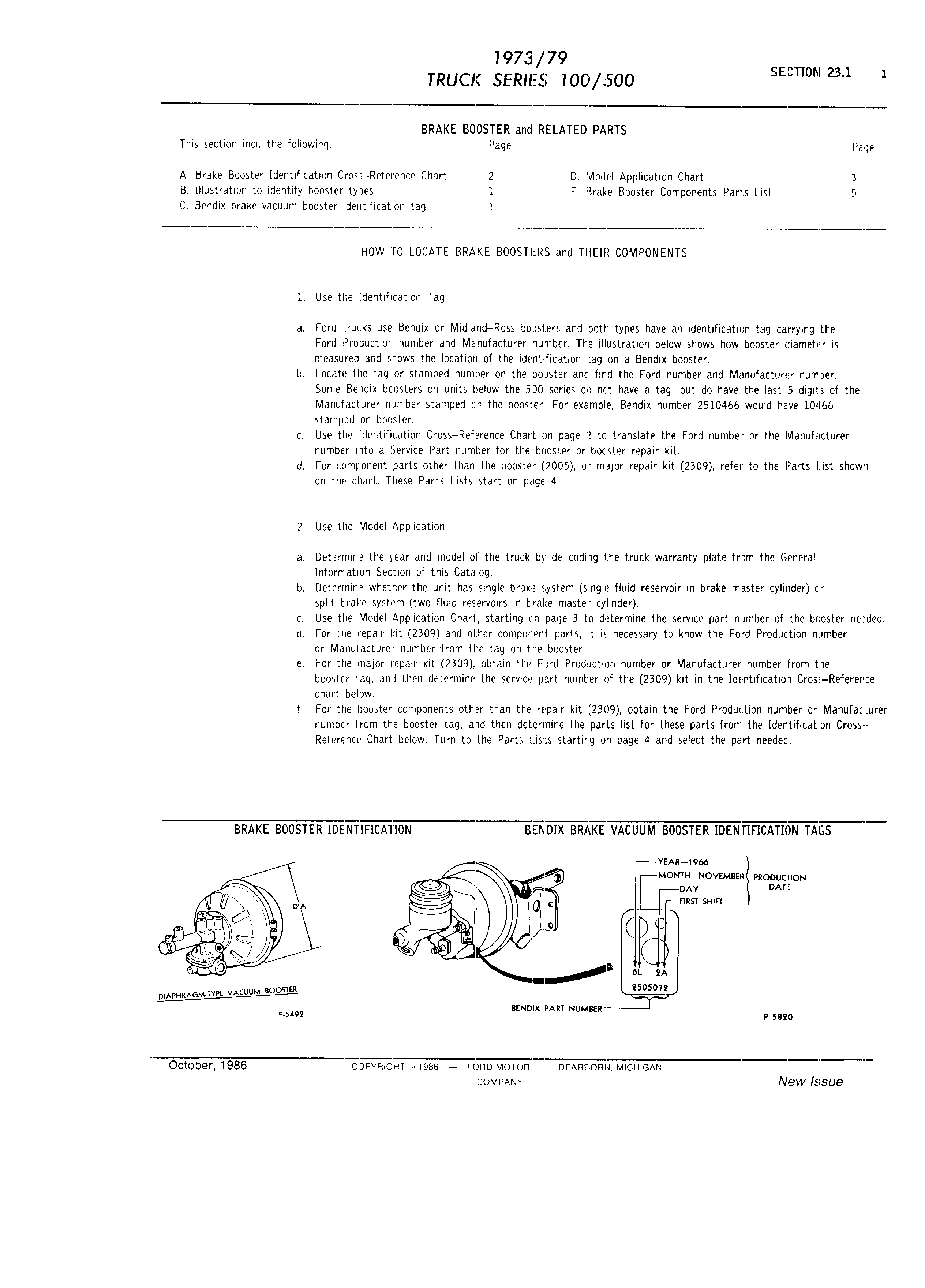

SECTION 23 1 1 TRUCK SERIEJ5 TOO 500 BRAKE BOOSTER and RELATED PARTS This section incl the following Page Page A Brake Booster Identification Cross Reference Chart 2 D Model Application Chart 3 B Illustration to identify booster types 1 E Brake Booster Components Parts List 5 C Bendix brake vacuum booster identification tag 1 HOW TO LOCATE BRAKE BOOSTEFES and THEIR COMPONENTS 1 Use the identification Tag a Ford trucks use Bendix or Mid and Ross ooosters and both types have an identification tag carrying the Ford Production number and Manufacturer number The illustration below shows how booster diameter is measured and shows the location of the identification l ag on a Bendix booster b Locate the tag or stamped number on the booster and find the Ford number and Manufacturer number Some Bendix boosters on units below the 500 series do not have a tag but do have l he last 5 digits of the Manufacturer number stamped on the booster For example Bendix number 2510466 would have 10466 stamped on booster c Use the identification Cross Reference Chart on page 2 to translate the Ford number or the Manufacturer number into a Service Part number for the booster or booster repair kit d For component parts other than the booster 2005 or major repair kit 2309 refer to the Parts l ist shown on the chart These Parts Lists start on page 4 2 Use the Model Application a Determine the year and model of the truck by de coding l he truck warra nty plate from the General information Section of this Catalog b Determine whether the unit has single brake system single fluid reservoir in brake master cylinder or split brake system two fluid reservoirs in brake master cylinder c Use the Model Application Chart starting c n page 3 to determine the service part number of the booster needed d For the repair kit 2309 and other component parts it is necessary to know the Ford Production number or Manufacturer number from the tag on toe booster e For the major repair kit 2309 obtain the Ford Production number or Manufacturer number from the booster tag and then determine the service part number of the 2309 kit in the Identification Cross Reference chart below f For the booster components other than the repair kit 2309 obtain the Ford Production number or Nlanufacturer number from the booster tag and then cletermine l he parts list for these parts from the Identification Cross Reference Chart below Turn to the Parts Lists starting on page 4 and select the part needed smite ooosfen ZEEIFICATION B fllDIX xE vilcuuivi Boosfen 1oew fincAT10N TA6 vzAk woo D M0N rH N0veMn z pnooucnou Lg DAY one R U Dm E Id 0 riizsw sum rs V l I 1 0 L 4 Q e 9 O 7 J j k b 6L A L g 2505079 nsiuoix nm Numan 54 W P 5820 I October 1986 DF YRlGl iT ieee M FORD M0tcF t oizaniaonri Micnicmsi oorviemsiv New ISSUQ
